Cordless Lighting System

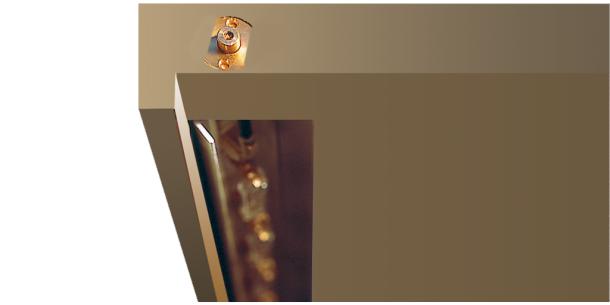

Modular lighting system for mobile shelves with aluminuim contactors to be installed as per picture configuration. Move the position of your shelves on the brackets without dismantling your electrical installation.

Specifications
Ref
Dimensions
Lighting unit
Connector
Voltage
Power
IP Protection
Length
Data Sheet

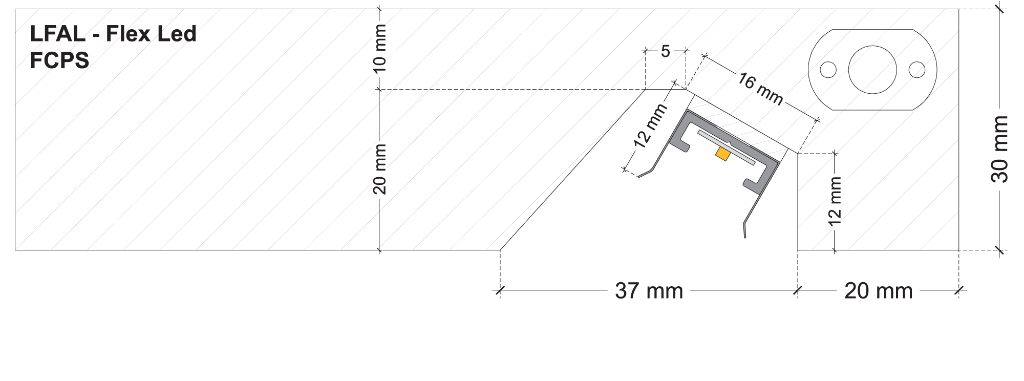

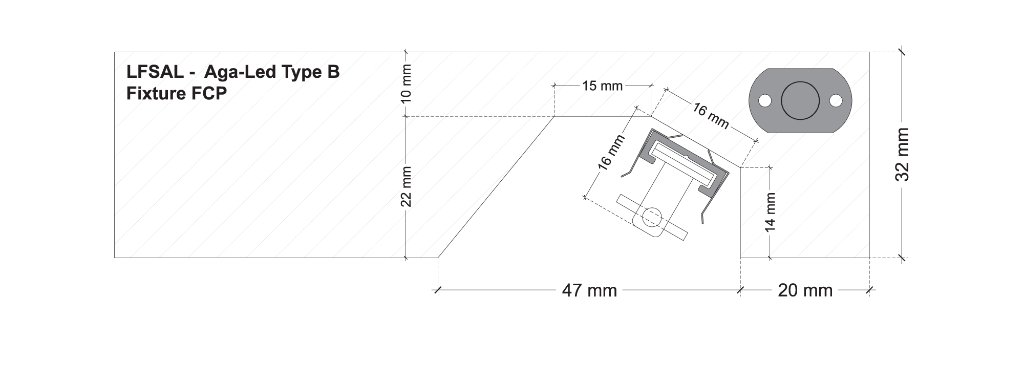

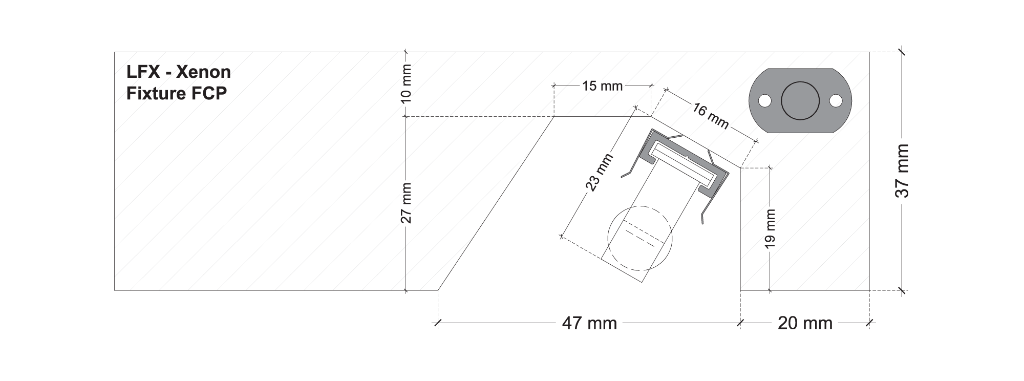

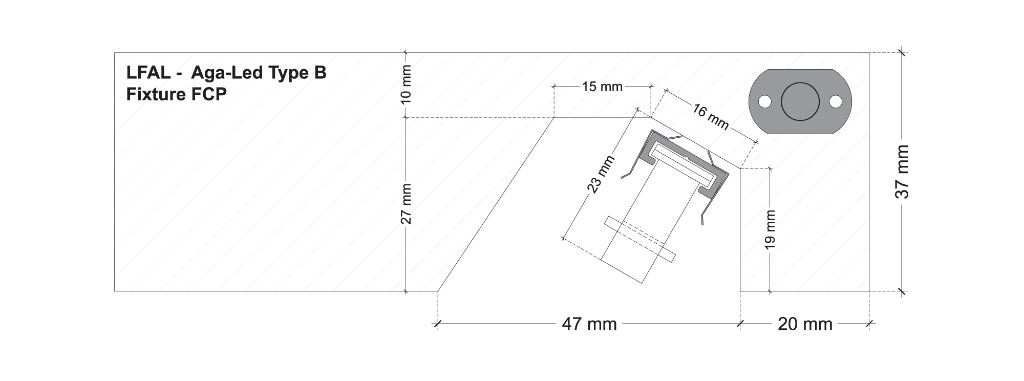

LFX LLS LFAL LFSAL LFAL
Xenon Soffite Aga-Led@ Type B Aga-Led@ Type B Flex Led
Rigid Loop Festoon Rigid Loop Festoon - -
24V 24V 24V 24V 24V
54W/m 54W/m 17.28W/m to 21.60W/m 17.28W/m to 21.60W/m 4.8W/m
IP20 IP20 IP20 IP20 IP20
up to 3000mm Up to 3000mm up to 3000mm Up to 3000mm Up to 3000mm
Download PDF Download PDF Download PDF Download PDF Download PDF
Finish & Certifications

Finish on request

Natural Anodised Aluminuim
Thermo-Enameling
Powder Coating RAL
Color Anodising
Polished Aluminuim

Certification

Mobile Shelves Cordless Lighting System full range is certified for
